72 Filling Valve 45000BPH Bottled Water Filling Machines

Certification
China Langfang BestCrown Packaging Machinery Co., Ltd certification
China Langfang BestCrown Packaging Machinery Co., Ltd certification
I'm Online Chat Now

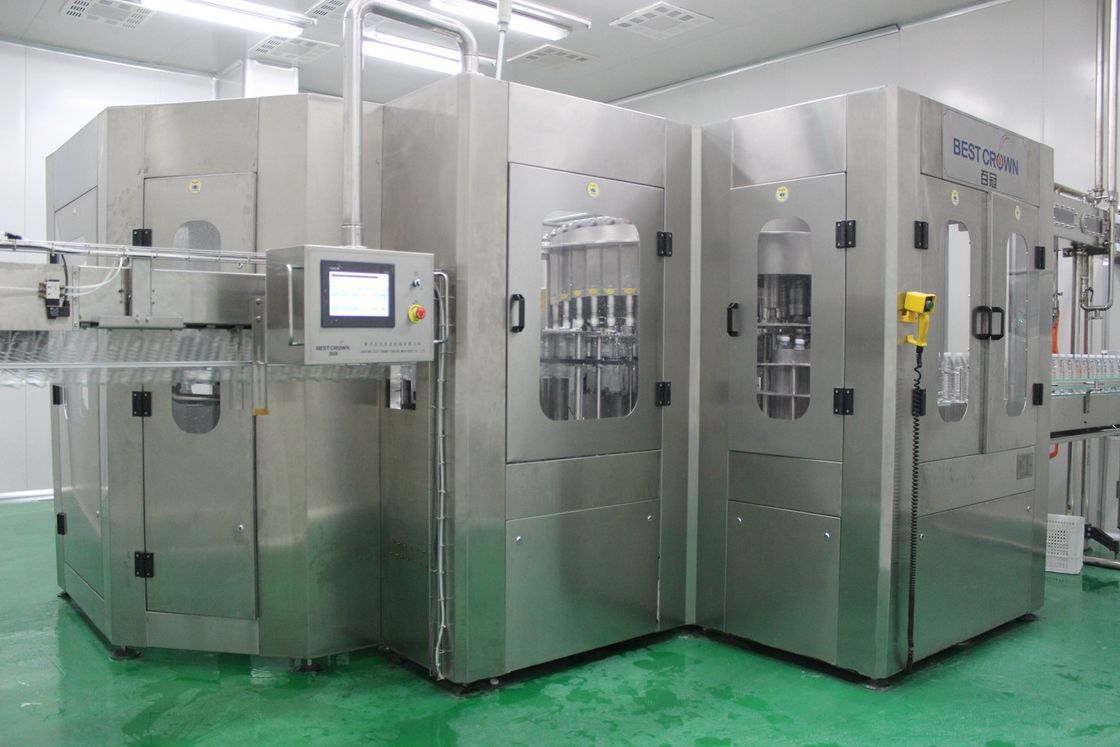

72 Filling Valve 45000BPH Bottled Water Filling Machines

72 Filling Valve 45000BPH Bottled Water Filling Machines
72 Filling Valve 45000BPH Bottled Water Filling Machines
72 Filling Valve 45000BPH Bottled Water Filling Machines 72 Filling Valve 45000BPH Bottled Water Filling Machines

Large Image :  72 Filling Valve 45000BPH Bottled Water Filling Machines

Product Details:
Place of Origin: Hebei China
Brand Name: BestCrown
Certification: CE, GB/T19001-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: According to customer customized products
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram

72 Filling Valve 45000BPH Bottled Water Filling Machines

Description
Material: Stainless Steel Process: Pressure Filling System
Certification: CE, GB/T19001-2000 Type: Drinking Water Filling Machine
Filling Valve: Gravity Mechanical Valve Or Customer Needs Capacity: 45000 Bph
Bottle Diameter: Φ60-Φ96 Mm Bottle Height: 180-315 Mm
Bottle Volume: 350-1500 Ml Dimensions: 6600x5100x2900 Mm
Weight: 15000 Kg Function: Bottle Washing Filling Capping
High Light:

32000 bph Bottled Water Filling Machines

,

300ml Bottled Water Filling Machines

,

1500ml drinking water filling machine

72 Filling Valve 45000bph Bottled Water Filling Machines

72 Filling Valve Bottled Water Filling Machine Easy To Operate



Capacity: A-15000 bottles/hour ----54000 bottles/hour (500ml)
Applicable bottle type 200ml-1500ml
Capacity: B-1500 bottles/hour-----8000 bottles/hour (5L)
Applicable bottle type 3L-10L
Filling valve: Gravity mechanical valve/imported flow meter valve is used according to customer needs



Our bottled water filling machine is an automatic liquid packing machine that combines bottle rinsing machine, pressure filling machine and capping machine together in one unit. In order to help our customers better understand our products, we give you some information regarding how our bottled water filling machine works. An air conveyor first conveys empty bottles to the rinsing machine orderly, then the bottles are turned over and washed inside by the nozzles. After dripping, the bottle are fed into the filling machine automatically for filling liquid at high speed. At last, the capping machine is used for safe and reliable capping of these bottles.





Specifications of Bottled Water Filling Machine



Model

Number of Bottle Rinsing Clip

Number of Filling Valve

Number of Capping Head

Capacity (BPH)

Bottle Size

Dimensions (mm)

Weight (Kg)

Remark

Diameter (mm)

Height (mm)

Volume (ml)

DGY06

18

18

6

8000

Φ60-Φ96

180-315

350-1500

2480x1980x2600

4000

All-in-one Type

DGY08

24

24

8

12000

Φ60-Φ96

180-315

350-1500

2800x2400x2600

6000

All-in-one Type

DGY10

32

32

10

16000

Φ60-Φ96

180-315

350-1500

3300x3000x2700 25002500 3085

7200

All-in-one Type

DGY12

40

40

12

20000

Φ60-Φ96

180-315

350-1500

3900x3180x2700

9000

All-in-one Type

DGY15

50

50

15

24000

Φ60-Φ96

180-315

350-1500

5300x4200x2900

10000

All-in-one Type

DGY15

60

60

15

28000

Φ60-Φ96

180-315

350-1500

5700x4600x2900

12000

All-in-one Type

DGY18

72

72

18

32000

Φ60-Φ96

180-315

350-1500

6600x5100x2900

15000

All-in-one Type





Features



The use of a pressure filling system helps ensure high filling speed, accuracy and quality.

The bottle is fed in by an air conveyor, transported by tapping the bottleneck, and then discharged through the conveyor chain, so you can easily change the size of the bottle.

Our bottled water filling machine uses the advanced "PICK, PLACE" capping system and is equipped with an electromagnetic clutch capping head to achieve reliable capping and convenient magnetic torque adjustment.

Due to the adoption of frequency conversion motor+PLC+MMI, the capacity, shift production and failure alarm could be displayed on the screen for ease of operation.





Quality and Cost Control


Founded in 1954, our company has accumulated more than 56 years of experience in this industry. We are fully aware that only high-quality, affordably priced beverage production lines and beverage machinery will satisfy our customers. Thus, we at Langfang Best Crown Packing Machinery Company Ltd. strictly adhere to a series of quality and cost control measures.

For instance, we import advanced technology from Germany and Italy, and we constantly improve our production technology of liquid filling to satisfy market demands. We also offer free training to each employee to help them improve their skills. This improves efficiency, and thus saves on labor costs. To ensure quality, testing is performed at every step of production to ensure the quality and passing rate of our tea drink production lines, water filling machines, juice filling machines, and more.
