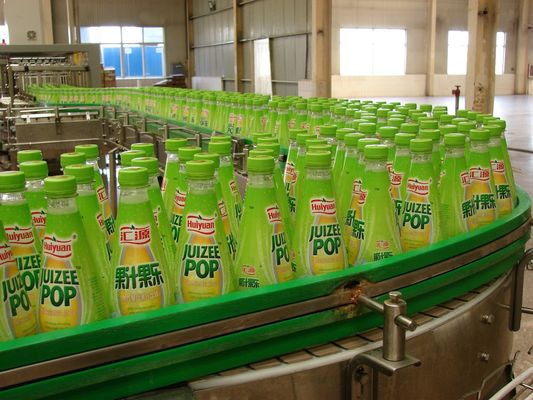

​Frequency Conversion Control Carbonated Soft Drink Filling Machine

Frequency Conversion Control Carbonated Soft Drink Filling Machine

PET bottle steam filling and sealing three-in-one machine

Capacity: 8000 bottles/hour ----54000 bottles/hour (500ml)

Filling principle: equal pressure filling

Applicable bottle type: 200ml-1500ml

Filling valve: According to customer needs, use equal pressure mechanical valve/imported flow meter valve

Applicable products: high-end aerated mineral water, aerated soda water, cola, sprite, aerated juice

Features

1. All parts in contact with liquid are made of high-quality stainless steel or non-toxic materials to ensure food safety and hygiene. Generally, the filling valve is made of stainless steel steel 316.
2. The sealing parts are made of heat-resistant rubber, which can meet the requirements of high temperature sterilization.
3. Our carbonated beverage and beer production line adopts PLC system to realize fully automatic control.
4. Frequency conversion speed regulation control, equipment adjustment is more convenient.

Specifications of Bottled Water Filling Machine

Auxiliary Equipment of Carbonated Beverage Production Line

Beverage Mixer

FTQ efficient vacuum degasser adopts membrane process for degassing, and utilizes our newly developed degassing components. Featuring high efficiency, easy operation and long service time, our degasser is a degassing device of choice for use in carbonated beverage production line, beer production line. Today it is widely used in food stuff, chemical, beer dilution, pharmacy, water treatment and other related industries.

Working Principle
Solubility of CO2 liquid depends on the property of solute and the purity of CO2. Compared to sugar water and salt water, pure water is easier to solubilize CO2. The impurities in CO2 gas can hinder the dissolution of CO2. Air is the most common impurity that constrains the dissolution of CO2 gas. It can not only constrain the effect of carbonation, promote the growth of mold and putrefying bacteria in the products, but also oxidize spice to destroy the flavor of the products.

Application to Carbonated Drinks
The solubility of CO2 in water is affected by the temperature, pressure and content of O2 in water. The product can fully degas the resolvable gases in water before mixing. The degassing rate is as high as 80%, which can make CO2 solubilize well in water and improve the mixing temperature as high as 12 ℃, thus saving energies and reducing the production cost of carbonated drinks.

Application to Beer Dilution
The content of O2 in the water for beer dilution can directly influence the taste quality of beer. The FTQ efficient degassing device can obviously reduce the content of O2 in the water and improve the quality of beer.
